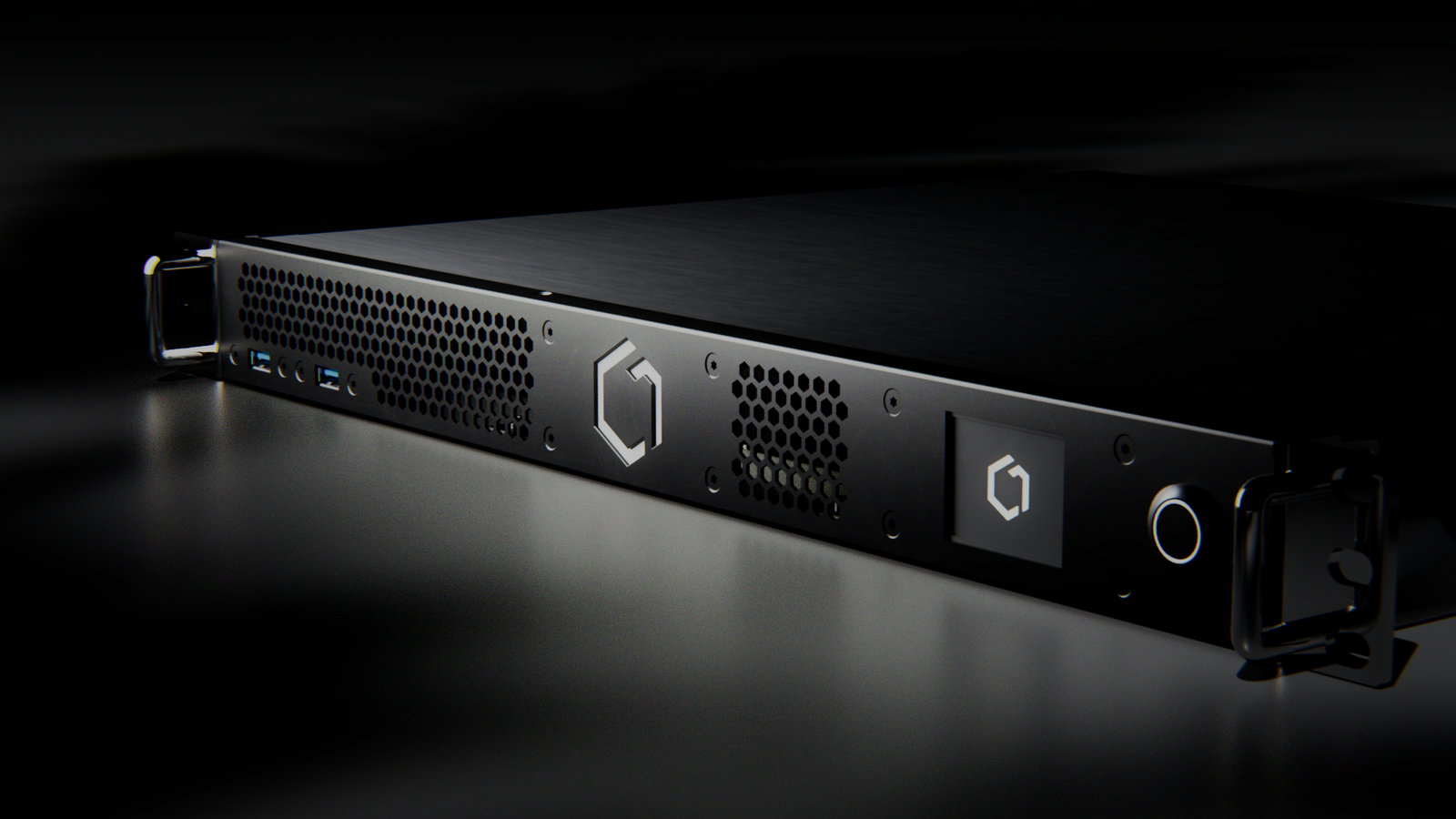

Purpose-Built Power
Engineered specifically for SP Grid, Grid Engine is optimised for real-time control and data processing giving you reliability & compatibility for peak performance.
Always-On Reliability
Enterprise-grade components and redundant power supply mean Grid Engine is ready to run 24/7 without compromise.
High-Performance Core
Powered by Intel® Xeon® processors, NVIDIA RTX graphics, and ultra-fast PCIe 4.0 NVMe storage, Grid Engine handles complex processing with speed and precision
Deployment-Ready
From immersive spaces to broadcast studios, Grid Engine is ready to install in any environment. Bundled with credit packs for greater savings on your whole project deployment.
Built for Integration

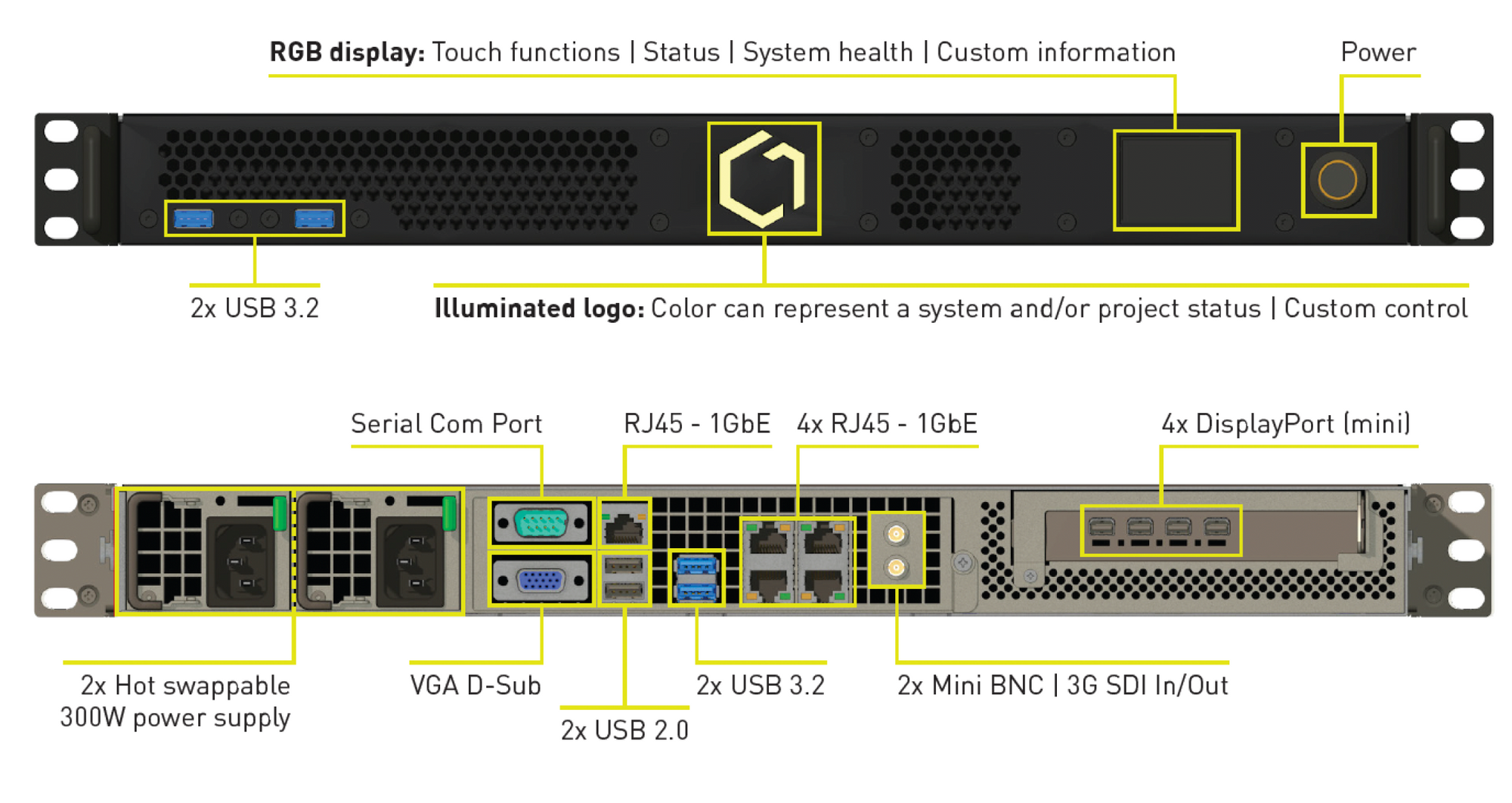

Quad LAN ports and SDI in/out for Genlock Sync or Calibration input, ensure Grid Engine drops straight into your existing AV ecosystem.
Intelligent Monitoring
An RGB touch display and illuminated status logo provide instant visibility of system health.
Product Specifications
| Operating System | Windows 11 IoT Enterprise LTSC |
| CPU | Intel Xeon E-2434, 4 Core 8 Thread, 3.4 / 5.0GhZ |
| Memory | 64GB Dual Channel ECC DDR5 |
| Operating System | Memory |
| Storage | PCIe 4.0 NVMe Samsung SSD 990 PRO - 1TB (930GB available) |
| Graphics | NVIDIA RTX A400 4GB |
| Video output | 4x DisplayPort (mini)1 x VGA D-Sub |
| Graphics (iGPU) | Aspeed AST2600 BMC |
| Network | Quad LAN Intel® I210 |
| Dedicated management network | Supermicro Server Manager, Supermicro Power Manager, IPMI Utilities, ACPI Power Management, Wake On Lan |
| Framelock (Sync)Â or Calibration input | 2x mini BNC, 3G SDI In / Out |
| USB 2.0 (2x) | 2x USB 2.0 |
| USB 3.2 (4x) | 2x USB 3.2 rear, 2x USB 3.2 front |
| D-Sub 9 | Serial com port |
Physical Specifications
| Dimensions | Width 482.6mm (19”), Height 1U - 44.4mm (1.748”) |
| Depth with handles | 425mm (16.73”) |
| Depth without handles | 405mm (15.9”) |
| Unit weight | 8.5Kg (18.74 lbs) |
| Packed dimensions | W577mm, H176mm, D546mm (W22.72 in, H6.93 in, D21.5 in) |
| Packed weight | 11Kg (24.25 lbs) |
More Information
| Redundant power supply | Redundant failover automation, 100 – 240V~, 50 – 60Hz, 4A Max. 80Plus GoldTwo IEC cables included |
| Operating temperature | 0 – 32° C (32 - 90° F) |
| Internal fans | ~55dB @ Idle, ~75dB @ Max Load |
Accessories
| 26” Slider Rails | 700mm-950mm travel length |
| 18” Slider Rails | For 600mm cabinet depth |
Flexible Deployment
Available as a standalone unit or bundled at point of sale with yearly or perpetual credit packs, offering a flexible, scalable foundation for projects of every size and complexity. Whether you’re deploying a single room or building a multi-server environment. Speak to the team about credit bundle options including:
- Unlimited Credit Bundles
- 1 year & 3 month Credit Packages
- Perpetual Credits Bundles
- Warranty Extension

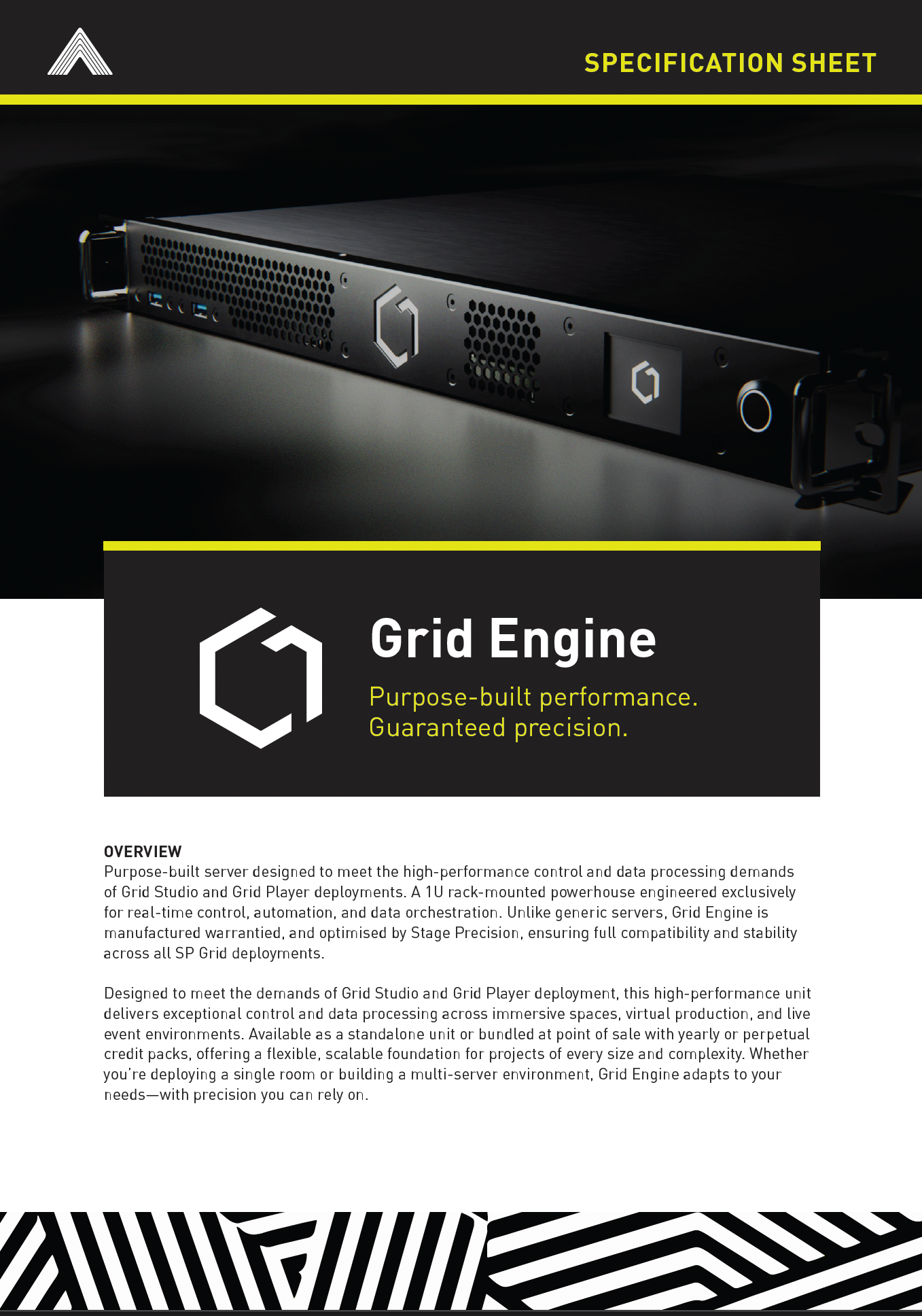

Specification Sheet
Whether you’re designing an immersive space, a broadcast studio, or a complex AV installation, knowing exactly what’s under the hood is key. This detailed spec sheet gives you the complete Grid Engine hardware breakdown
