Control-Ready Interfaces. Powered by Android

Grid Touch turns control interface design into real-world operator and end user surfaces. These deployment-ready Android panels run your streamed interfaces from Grid Studio or Grid Runtime, with a responsive, consistent experience. They connect directly via Grid Studio or Grid Runtime with no additional credits required.

Request quote

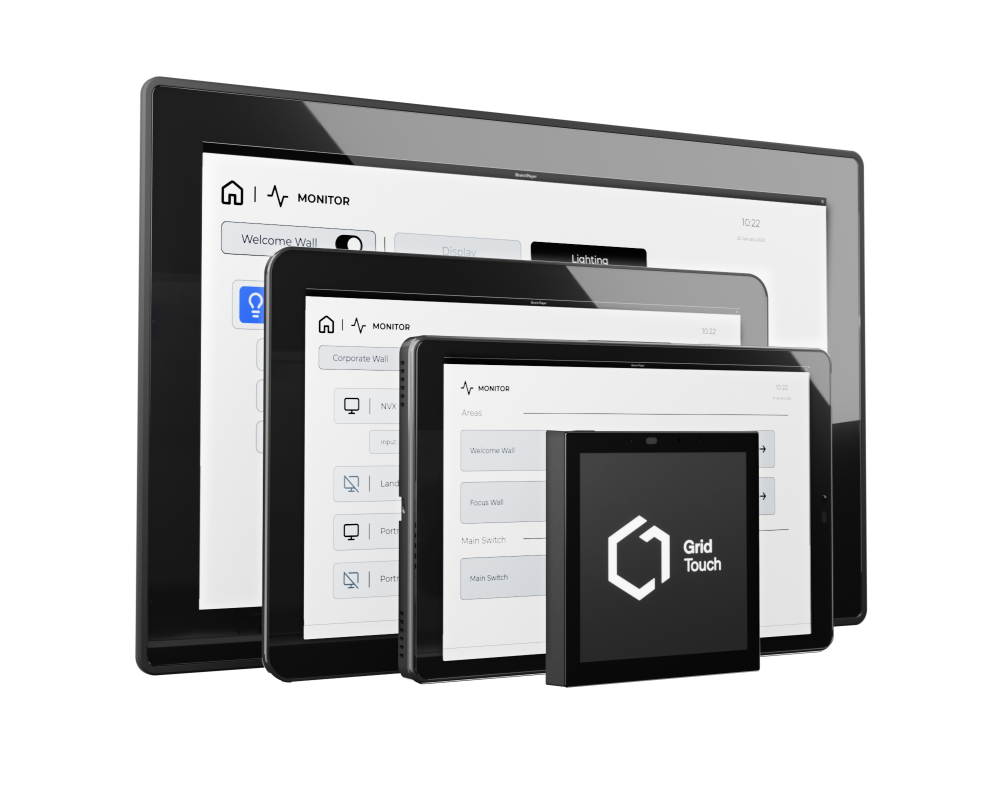

Sizes for Every Space

The Grid Touch range of Wall-Mount Surface panels are available from compact 4” quick access room controls to full 15” engineer dashboards.

Powered by Grid Viewer OS

Every panel runs our Grid Viewer OS on Android for consistent performance, secure deployments, and a unified operator experience across sites.

PoE-Ready

Power your wall panel over Ethernet to reduce cabling, simplify commissioning, and deliver professional fixed installations.

Interface Design

Use Grid Studio to design custom control interfaces, using standard Grid Widgets or user designed interface elements.

VESA Compatible

Every panel comes with an industry standard VESA mount wall bracket for mounting.

WiFi + Ethernet as Standard

Deploy flexibly with robust wired networking or fast WiFi connectivity, depending on your install environment

Grid Touch Specification

Designed to meet the demands of User or Engineer Touch panel requirements and simple, fast deployment scenarios, this range of touch surface devices delivers exceptional control across immersive spaces, studio and broadcast, and live event environments. From size to ports, see exactly what hardware options you can chose from:

Grid Touch 4
Grid Touch 8
Grid Touch 10
Grid Touch 15
Description
4" Android Touch Panel with Grid Viewer OS
8" Android Touch Panel with Grid Viewer OS
10" Android Touch Panel with Grid Viewer OS
15" Android Touch Panel with Grid Viewer OS
Product SKU
SPT4
SPT8
SPT10
SPT15
Dimensions
86mm x 85mm x 36mm
124.59mm x 200mm x 37.7mm
254mm x 168mm x 28.5mm
399.88mm x 246.79mm x 40.3mm
Display size (inch)
4
8
10
15
Resolution
480 x 480
800 x 1280
1280 x 800
1920 x 1080
Touch Panel
capacitive touch
10 point capacitive touch
10 point capacitive touch
10 point capacitive touch
RAM
2 GB
4 GB
4 GB
4 GB
ROM
32 GB
32 GB
32 GB
32 GB
WIFI
802.11b/g/n
802.11b/g/n
802.11b/g/n
802.11b/g/n
Ethernet
10M/100M/1000M
10M/100M/1000M
10M/100M/1000M
10M/100M/1000M
Power
PoE
PoE
PoE
PoE
Working Temp (C)
-10 to 60
-10 to 60
-10 to 60
-10 to 60
Extras
SP Viewer Credit are included with this product.
SP Viewer Credit are included with this product.
SP Viewer Credit are included with this product.
SP Viewer Credit are included with this product.

Specification Sheet

Need panel dimensions? Download the Grid Touch specification sheet for technical drawings for installation.

download
